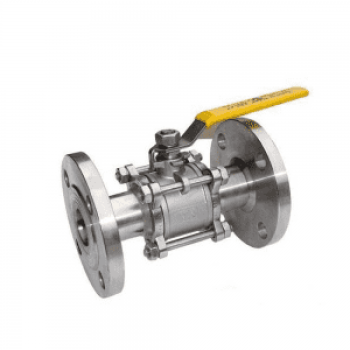

STAINLESS STEEL THREE-PIECE FLANGED BALL VALVE Q41F

STAINLESS STEEL THREE-PIECE FLANGED BALL VALVE Q41F

STAINLESS STEEL THREE-PIECE FLANGED BALL VALVE Q41F
CategoriesBall Valve
BrandKRV
ModelDN25-DN200
Update Time2021-09-25
Detail Information

Product characteristics

Nominal pressure: 1.6-6.4 MPa

Applicable stability range: - 20 - 232 ~350 ~

Applicable media: water, oil, gas and some corrosive liquids (W). O. G)

Thread types: G, NPT, BSPT, BSP, DI259/2999



Main Connection Size and Weight

SIZE

1/4″

3/8″

1/2″

3/4″

1″

1-1/4″

1-1/2″

2″

2-1/2″

3″

4″

D

11.6

12.7

15

20

25

32

38

50

65

80

100

L

68

68

72

82

90

112

120

145

185

210

268

H

100

100

130

130

165

165

190

190

250

250

280

W

100

100

130

130

165

165

190

190

250

250

280



Major Parts Materials

Part name

Texture of material

valve body

Stainless steel CF8M

carbon steel

Seal ring

Teflon PTFE

carbon steel WCB

Bonnet

Stainless steel CF8M

Teflon PTFE

sphere

Stainless stee SS316

Stainless stee SS316

Stem

Stainless stee SS316

Stainless stee CF8M

Nut

Stainless steeSS304

FCD45

Washer

Stainless stee SS304

FCD45

Handle sleeve

Plastic

Plastic

Handle

Stainless stee SS304

Stainless stee SS304

Stem nut

Stainless stee SS304

B7

Packing cap nut

Stainless stee SS304

FCD45

filler

Teflon PTFE

Teflon PTFE

Thrust washer

Teflon PTFE

Teflon PTFE

Bolt

Stainless stee SS304

B8
