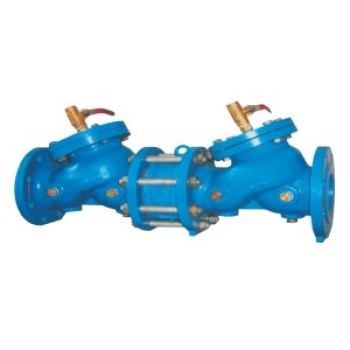

DRAIN BLOCK VALVE

DRAIN BLOCK VALVE

DRAIN BLOCK VALVE
CategoriesWATER CONTROL VALVE
BrandKRV
ModelDN50-DN600
Update Time2021-06-17
Detail Information

Typical installation diagram


technical parameter

Nominal pressure:1.0~2.5Mpa

Nominal route:50~600mm

Applicable media:water

Flange standard:GB/T  17241.6、GB/T  9113、EN1092

Test standard:GB/T  13927、API598

Material of main parts

Serial numberPart nameMaterial Science
1valve bodyCast iron, ductile iron, cast steel
2Valve coverCast iron, ductile iron, cast steel
3Valve discDuctile iron
4SpringStainless steel, chrome vanadium steel
5Blowdown valvebrass

Antifouling block valve drawing

Main connection dimensions

DN506580100125150200250300350400450500  600
L45848255165373579310081186134015051670188619862318
H2102352643083564005035957057059059109211210
