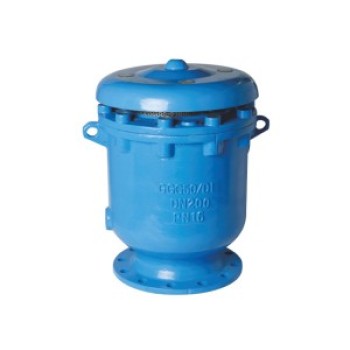

CARX COMPOSITE EXHAUST VALVE

CARX COMPOSITE EXHAUST VALVE

CARX COMPOSITE EXHAUST VALVE

Categories	WATER CONTROL VALVE
Brand	KRV
Model	DN50-DN300
Update Time	2022-01-19

Detail Information

technical parameter

Nominal pressure	Nominal diameter	Applicable media	Applicable temperature	Flange standard	Test standard
PN1.0/1.6MPa	DN50-300mm	Water 、sewage	0-80℃	GB/T17241.6	GB/T13927
valve body	Valve cover	Floating ball	Lever frame	lever	Stopper
Ductile iron	Ductile iron	stainless steel	stainless steel	Aluminum bronze	Aluminum green steel

CARX Drawing of compound exhaust valve

Main connection dimensions

DN	D		D1		H	N—Φd
DN	PN10	PN16	PN10	PN16	H	PN10	PN16
50	165	165	125	125	280	4—Φ19	4—Φ19
80	200	200	160	160	365	8—Φ19	8—Φ19
100	220	220	180	180	395	8—Φ19	8—Φ19
150	285	285	240	240	485	8—Φ23	8—Φ23
200	340	640	295	295	570	8—Φ23	8—Φ23
250	395	405	350	355	655	12—Φ23	12—Φ23
300	445	460	400	410	750	12—Φ23	12—Φ23
