ZYC SELF OPERATED PRESSURE CONTROL VALVE

Detail Information

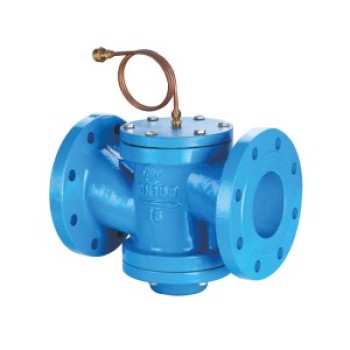

Drawing of ZYC self operated pressure control valve

Technical parameter

Nominal pressure: 1.6Mpa

Nominal diameter: 15 ~ 125mm

Use medium: water, oil and other non corrosive liquid

Applicable temperature: 0 ~ 100 ℃

Control range: constant pressure difference type: 10KPA, 20KPa, 30KPa

Flange standards: GB / T 17241.6, GB / t9113, en1092

Test standard: GB / T 13927, API598

Typical installation diagram

Material of main parts

Part name	valve body	Stem	Disc	diaphragm
texture of material	Gray cast iron, cast steel	stainless steel	Copper glue	Nitrile rubber casting

Main connection dimensions

DN		15	20	25	32	40	50	65	80	100	125
Connection mode		thread			flange
L		110	110	115	130	200	215	230	275	290	310
H（mm）	Constant pressure difference type	95	110	130	140	190	205	240	300	350	380
flow		0.2-1	0.3-1.5	0.5-2	1-4	1.5-6	2-8	3-12	5-20	10-30	15-45
