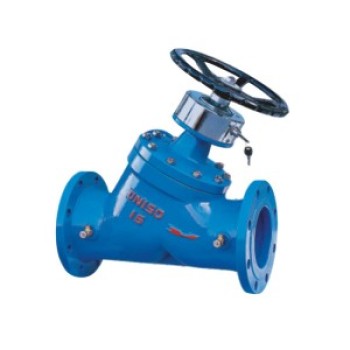

SP45 / 15F LOCKING BALANCE VALVE

SP45 / 15F LOCKING BALANCE VALVE

SP45 / 15F LOCKING BALANCE VALVE
CategoriesWATER CONTROL VALVE
BrandKRV
ModelDN40-DN350
Update Time2021-09-20
Detail Information

Technical parameter

Nominal pressure: 1.6Mpa

Applicable temperature: 0 ~ 120 ℃

Applicable medium: water, oil and other non corrosive liquids

Flange standard: GB / t17241.6 GB / t9113 en1092

Test standard: GB / T 13927, API598



Drawing of SP45 / 15F locking balance valve




Typical installation diagram




diagram


Material of main parts

Part nameValve body, valve coverStemValve disca seal
texture of materialCast iron, ductile iron, carbon steelstainless steelDuctile ironRubber asbestos board

Main connection dimensions

SP45FDN3240506580100125150200250300350SP15FDN1520253240
L200200215240280310360400460515585700ZG1/2”3/4”1”5/4”3/2”
L100115124140160
H230242250260329340424454517573617705H128
