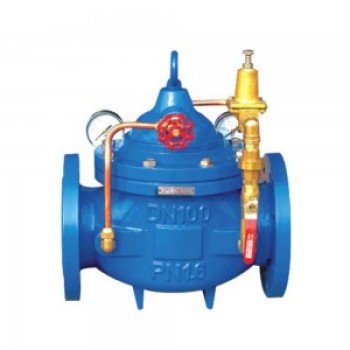

200X PRESSURE REDUCING AND STABILIZING VALVE

200X PRESSURE REDUCING AND STABILIZING VALVE

200X PRESSURE REDUCING AND STABILIZING VALVE

Categories	WATER CONTROL VALVE
Brand	KRV
Model	DN50-DN700
Update Time	2021-09-25

Detail Information

200X Typical installation diagram of pressure reducing and stabilizing valve

200X Pressure reducing and stabilizing valve drawing

200X Main connecting dimensions of pressure reducing and stabilizing valve pm1.0/1.6mpa

公称通径（DN）		50	65	80	100	125	150	200	250	300	350	400	450	500	600	700	800
L	PN1.0MPa	241	234	280	360	430	455	585	790	900	900	962	962	1076	1232	1437	1750
L	PN1.6MPa	241	234	280	360	430	455	587	794	900	900	962	962	1076	1232	1437	1750
H1		152	145	167	232	288	342	413	502	600	600	685	685	880	1050	1225	1400
H		250	250	271	375	455	502	636	781	913	913	1035	1035	1300	1535	1793	2022
