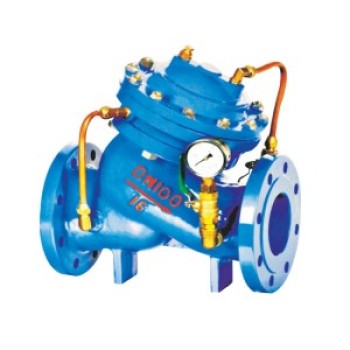

DIAPHRAGM TYPE MULTIFUNCTIONAL WATER PUMP CONTROL VALVE

DIAPHRAGM TYPE MULTIFUNCTIONAL WATER PUMP CONTROL VALVE

DIAPHRAGM TYPE MULTIFUNCTIONAL WATER PUMP CONTROL VALVE

Categories	WATER CONTROL VALVE
Brand	KRV
Model	DN50-DN1000
Update Time	2021-09-27

Detail Information

Typical installation diagram of diaphragm type multifunctional water pump control valve

Drawing of diaphragm type multifunctional pump control valve

Main connecting dimensions of diaphragm type multifunctional pump control valve pn1.0-4.0mpa

DN		50	65	80	100	125	150	200	250	300	350	400	450	500	600	700	800	900	1000	1200
L	PN1.0MPa	240	300	310	320	390	460	540	610	700	800	980	1050	1100	1300	1520	1750	1800	2000	2350
	PN1.6MPa	240	300	310	320	390	460	540	640	800	800	980	1050	1140	1350	1550	1750	1850	2050	2400
	PN2.5MPa	250	300	310	350	410	470	560	670	800	820	1000	1060	1140	1350	1550	1750	1900	-	-
	PN4.0MPa	265	340	340	370	420	470	560	670	860	940	1020	1100	1180	-	-	-	-	-	-
H		293	328	364	418	481	543	673	729	927	957	1188	1218	1256	1600	1800	1870	19
