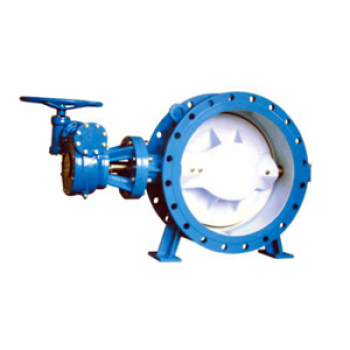

D343X RESILIENT SEATED DOUBLE ECCENTRIC FLANGE BUTTERFLY VALVE

D343X RESILIENT SEATED DOUBLE ECCENTRIC FLANGE BUTTERFLY VALVE

D343X RESILIENT SEATED DOUBLE ECCENTRIC FLANGE BUTTERFLY VALVE
CategoriesECCENTRIC BUTTERFLY VALVE
BrandKRV
ModelDN100-DN1200
Update Time2021-09-27
Detail Information

Featurs:

1.Simple and compact structure .light weight,90° rotation .quick and flexible opening and closing.

2.Ecentric structure allows reduced friction with seal ring and extended service life.

3.Sound seal design gives a full sealing without any leakage .thus ensuring a reliable application in adverse working condition.

4.By changing disc seal ring.O ring .disc, shaft and the like.the product can be used in many different media and temperature conditions.

5.The valve body is provided with foundation support,so it can be installed either vertically or horizontally.

6.Easy to mount and dismantle thus convenient for servicing.

软密封双偏心法兰蝶阀1

Technical diameter

DN(mm)Nominal diameter

100~200

PM(MPa)Nominal pressure

1.6

Testing pressure

Shell

2.4

Sealing

 1.76

 °C Suitable temperature

-10~80

Suitable medium

Portable water,sewage,sea water,air and etc.

Main dimensions and weight

DN(mm)LDD1dnd0bfH1H2økg
1001272201801568 19193 310 109150 19
1501402852402118 23193 440 143150 37
2001523402952668 23203 510 18230051
25016539535031912 23223 565 219300 68
30017844540037012 2324.54 630 244300 93
35019050546042916 2324.54 715 283400 122
40021656551548016 2824.54 750 312400 152
45022261556553020 2825.54 820 344400 182
50022967062058220 2826.55 845 381400 230
600267780/755725/705682/6672031/26 305950 451400 388
700292895/860840/810794/7722431/26 32.55 1010 526400 480
8003181015/975950/920901/8782434/31 355 1140 581500 661
9003301115/10751050/10201001/978 28/2434/31 37.55 1197643500 813
10004101230/11751160/11201112/10782837/31 405 1277 722500 1018
12004701455/14051380/13401328/1295 3240/34 455 1511 840500 1501
