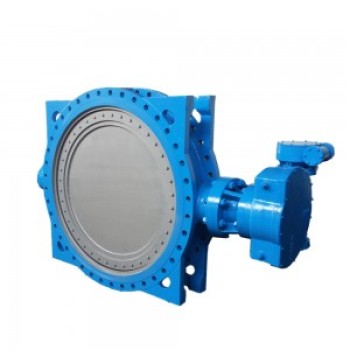

SOFT SEALED SINGLE ECCENTRIC BUTTERFLY VALVE D342

Categories	FLANGE BUTTERFLY VALVE
Brand	KRV
Model	DN100-DN1200
Update Time	2022-01-24

Contact Now

Detail Information

Product characteristics

1. Reasonable design, compact structure, easy assembly and disassembly, easy maintenance.

2. Use eccentric structure to reduce friction of sealing ring and prolong service life

3. Valve plate sealing ring adopts "T" type structure, and the sealing pair is linearly sealed.

4. Fully sealed, zero leakage

5. Replace the material of valve plate sealing ring, O-ring, valve plate, rotating shaft and other parts. It can be applied to various media and different temperatures.

Product parameters

Nominal pressure	PN 1.0/1.6Mpa
Applicable temperature	≤120℃
Applicable media	Water, air, food, oil
Main Parts and Components	Body, Disc, Stem, Seat, Rotary Shaft
Major Materials	Ductile Iron

Major Dimensions and Weights

Specifications	Transmission	L	D	D1	d	n	d0	b	f	Φ	weight
DN100	XJ24	127	220	180	156	8	19	19	3	150	19
DN150	XJ24	140	285	240	211	8	23	19	3	150	37
DN200	XJ30	152	340	295	266	8	23	20	3	300	51
DN250	XJ30	165	395	350	319	12	23	22	3	300	68
DN300	4022	178	445	400	370	12	23	24.5	4	300	93
DN350	4023	190	505	460	429	16	23	24.5	4	400	122
DN400	4023	216	565	515	480	16	28	24.5	4	400	152
DN450	4024	222	615	565	530	20	28	25.5	4	400	182
DN500	4024	229	670	620	582	20	28	26.5	4	400	230
DN600	4025	267	780/755	725/705	682/667	20	31/26	30	5	400	388
DN700	4025	292	895/860	840/810	794/772	24	31/26	32.5	5	400	480
DN800	4026	318	1015/975	950/920	901/878	24	34/31	35	5	500	661
DN900	4026	330	1115/1075	1050/1020	1001/978	28/24	34/31	37.5	5	500	813
DN1000	4026	410	1230/1175	1160/1120	1112/1078	28	37/31	40	5	500	1018
DN1200	4027	470	1455/1405	1380/1340	1328/1295	32	40/34	45	5	500	1501
