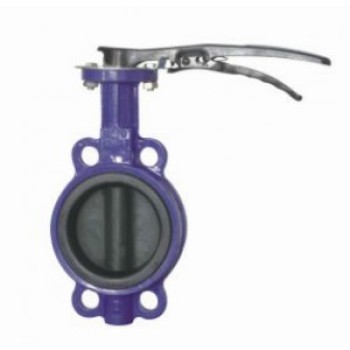

WITHOUT PIN RUBBER LINING HANDLE WAFER BUTTERFLY VALVE

WITHOUT PIN RUBBER LINING HANDLE WAFER BUTTERFLY VALVE

WITHOUT PIN RUBBER LINING HANDLE WAFER BUTTERFLY VALVE
CategoriesWAFER AND LUG TYPE B V
BrandKRV
ModelDN40-DN600
Update Time2021-09-26
Detail Information

Features

1.Small in size and light in weight.  Easy disassembly and maintenance.It can be installed at any position.

2.Simple structure, compact, 90 degree swing start and close quickly.

3.Small operating torque, light and labor-saving

4.Flow characteristics tend to be straight line, good regulation performance

5.Opening and closing test times up to tens of thousands of times, long life

6.Bubbles-tight sealing with no leakage under the pressure test.

7.Wide selection of materials,applicable for various mdeium.

8. Axle and valve's broad is linked by no line gum, function is more reliable.

9.Valve's broad line gum, steel aren't contact with medium, against corrosiveness is good.

10.Suitable mediums:water, sea water, different kinds of gasses, oil product, acidproof, alkali, salt grade organic chemistry thing.


Main dimensions and weight

DNABLDCHD1n-øKEn-ø1ø2kg
mminch
4011/2"130734152.72877.78 110 4-1877 57 4-712.7 3.8
502"130734152.72888.381254-1877574-712.73.8
6521/2"142804364.428 120.13/113.13 145 4-1877 57 4-712.7 4.2
803"1559644.578.828 61.23 160 4-1877 57 4-712.7 4.7
1004"17012350104.228 68.88 180 8-1892 69 4-10.515.8 9.0
1255"17312554123.329 80.36 2108-1892 69 4-10.519.0510.9
1506"2041405415729 91.84/112.892408-1892 69 4-10.519.0514.2
2008"23917360202.532 76.35 295 8-22/8-23114 89 4-14.3 22.22 18.2
25010"27520066250.540 90.59/91.88 350/355 12-23115 89 4-14.3 28.6 26.8
30012"32023075.5301.640 103.52/106.12 400/41012-23/12-26140108 4-14.3 31.8 40
35014"36826776.5333.34089.74/91.69 460/470 16-23/16-26140108 4-14.3 31.856
40016"40030986.5389.651.2/72 100.48/102.42 515/525 16-23/16-26197159 4-20.533.3 96
45016"40030986.5389.651.2/72 100.48/102.42 515/525 16-23/16-30197159 4-20.5 38 122
50020"480361131.8491.664.2/82 96.99/101.68 620/65020-26/20-33197159 4-20.641.15 202
60024"562459152592.570.2/82 113.42/120.46 725/770 20-30/20-36276 215.9 4-22.250.65 270
