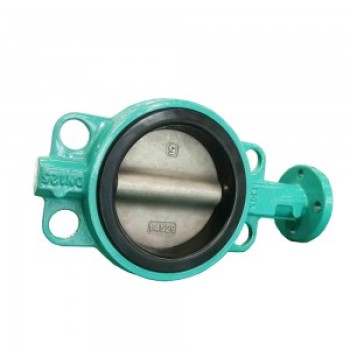

BUTTERFLY VALVE FOR CLIP DESULFURIZATION

BUTTERFLY VALVE FOR CLIP DESULFURIZATION

BUTTERFLY VALVE FOR CLIP DESULFURIZATION
CategoriesWAFER AND LUG TYPE B V
BrandKRV
ModelDN40-DN1200
Update Time2021-06-14
Detail Information

Multifunctionality

It is widely used in pipelines of petroleum, chemical industry, food, medicine, paper making, hydropower, ship, water supply and drainage, gold treatment, energy and other systems. It is suitable for a variety of corrosive gases, liquids, semi-liquids and solid powder media.



Product parameters

Applicable temperature

Applicable medium

Natural rubber≤85℃

Gypsum slurry, limestone slurry,

recycled water, process water, wastewater

EPDM≤100℃

Major Parts Materials

Name

Material Science

valve body

Gray Iron, Ductile Iron, Carbon Steel

Disc

Carbon steel coated rubber, carbon steel coated fluoroplastics,

stainless steel duplex stainless steel plate 1.4529、C276

valve seat

Natural Rubber, EPDM, Rubber

Stem

Stainless steel、 2Cr13、304

Size list

Nominal diameter (DN)

L

D

D1

Z-Ф

H

H1

A

B

D0

weight (kg)

40

33

150

110

4-18

350

270

193

125

150

7

50

43

165

125

4-18

360

280

193

125

150

8

65

46

185

145

4-18

385

295

193

125

150

9

80

46

200

160

8-18

396

300

193

125

150

10

100

52

220

180

8-18

430

315

193

125

150

11

125

56

250

210

8-18

460

335

193

125

150

13

150

56

285

240

8-22

485

345

193

125

150

14

200

60

340

295

8-22

630

455

283

165

220

30

250

68

395

350

12-22

690

484

283

165

220

40

300

78

445

400

12-22

770

530

334

175

280

78

350

78

505

460

16-22

830

560

334

175

280

81

400

102

565

515

16-26

910

595

425

210

320

140

450

114

615

565

20-26

938

618

425

210

320

160

500

127

670

620

20-26

993

650

425

210

320

190

600

154

780

725

20-30

1131

718

425

210

320

315

700

165

895

840

24-30

1476

998

620

320

400

480

800

190

1015

950

24-33

1533

1008

620

320

400

516

900

203

1115

1050

28-33

1655

1070

620

320

400

780

1000

216

1230

1160

28-36

1765

1125

620

400

400

950

1100

230

1340

1270

32-36

1880

1184

620

400

400

1050

1200

254

1455

1380

32-39

1995

1240

620

400

400

1150
