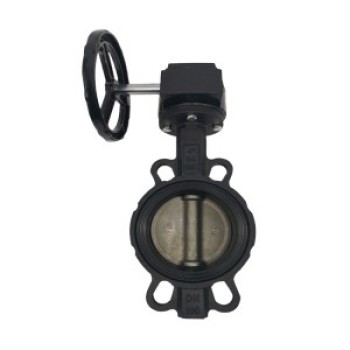

TURBINE WAFER TYPE DESULFURIZATION BUTTERFLY VALVE

TURBINE WAFER TYPE DESULFURIZATION BUTTERFLY VALVE

TURBINE WAFER TYPE DESULFURIZATION BUTTERFLY VALVE
CategoriesWAFER AND LUG TYPE B V
BrandKRV
ModelDN50-DN600
Update Time2021-06-17
Detail Information

Material of main parts of turbine wafer type desulfurization butterfly valve

Part nameMaterial Science
valve bodyGray cast iron, ductile iron, carbon steel
Valve plateCarbon steel coated rubber, carbon steel coated fluoroplastics, stainless steel duplex stainless steel plate 1.4529、C276
valve seatNatural rubber, EPDM, rubber
Stemstainless steel、20Cr13、304
fillerPoly (vinyl chloride)

Executive standard of turbine wafer type desulfurization butterfly valve

Design and manufactureAPI609   GB/T12238

Flange connection

GB/T17251.2、GB/T9113、EN1092、ASME B16.5、JIS 10K
Structural lengthGB/T12221、EN558、API609
Test and inspectionGB/T13927、API1598

Main technical parameters

Nominal diameterDN50-DN200mm
Nominal pressure0.6/1.0/1.6MPa
Test pressurestrength1.5
density1.1
seal up0.6
Applicable temperatureNatural rubber≤85℃EPDM≤100℃
Applicable mediaGypsum slurry, limestone slurry, recycled water, process water, wastewater

Drawing of turbine wafer type desulfurization butterfly valve


Main connecting dimensions of turbine wafer type desulfurization butterfly valve

DN(mm)NPS(in)LDD1H1H2H3H4BN-ΦAKEn1-Φ1ΦWΦ2Gf
5024352.912080161663284.844-231607757.154-6.715012.610013
652.54664.5136.289175663296.24-26.51607757.154-6.712012.612013
8034678.816095181663261.238-181607757.154-6.715012.612713
100452104185114200663270.84-24.51609269.854-10.315015.7715613
125556123.3215127213663282.284-231609269.854-10.315018.9219013
150656155.6238139226663291.084-251609269.854-10.315018.9221213
200860202.52951752608245112.894-2524011588.94-14.329822.126813
76.354-23
2501068250.5357203292824592.44-2924011588.94-14.329824.4532513
3001278301.64072423378445105.344-29225140107.954-14.329831.640320
3501478333.3467267368844591.114-30225140107.954-14.329831.643620
40016102389.651532540012051.2100.474-26280197158.754-20.630033.1548820
8852572102.424-30
45018114440.5156534542212051.288.394-26362197158.754-20.630037.9553620
1075857291.514-30
50020131491.662037848015064.286.994-26362197158.754-20.630041.1559022
65082101.684-33
60024154592.572547556215070.2113.4220-30362276215.94-22.230050.6581622
77082120.4620-36



Product features of turbine wafer type desulfurization butterfly valve



1. The non eccentric design with medium linear structure has the characteristics of low operating torque and remarkable economy when equipped with electric device;

2. Reasonable design, compact structure, simple installation and disassembly, easy maintenance;

3. With rubber lining structure, the butterfly plate circumferential sealing surface is precision machined to a higher finish, the friction coefficient of rubber seat is low, and the valve service life is long;

4. The flow pattern of the valve plate sealing surface is linear, with small flow resistance coefficient and small valve flow resistance;

5. The designed molded rubber seat has good balance and support, which can effectively avoid the damage to rubber caused by uneven force. When the valve is fully closed, the rubber is in a good compression state to maintain zero leakage;

6. The rubber sealing surface of the two ends of the valve protrudes from the ductile iron flange surface, so there is no need for additional rubber sealing gasket when the valve is installed in the pipeline;

7. The operating mechanism of butterfly valve is flexible.
