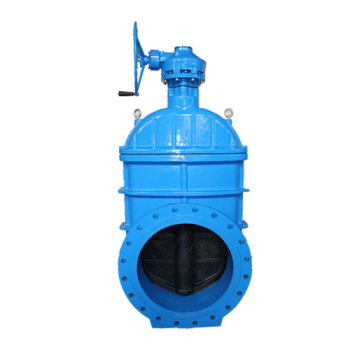

BEVEL GEAR SOFT SEALED GATE VALVE

BEVEL GEAR SOFT SEALED GATE VALVE

BEVEL GEAR SOFT SEALED GATE VALVE
CategoriesGate Valve
BrandKRV
ModelDN 500- DN 1200
Update Time2021-09-27
Detail Information

Large-caliber gate valves are made of the best quality ductile iron or carbon steel. They have the characteristics of high strength, light weight and precise geometric size. The gate boards have the function of interchange, and the spiral bevel gear labor-saving mechanism is installed. One person can switch easily and freely, and also can install the opening and closing indicator column according to the requirements of users, or electric, pneumatic systems, municipal construction and mines.

Product characteristics:

1. Flat-bottomed seat, no accumulation of dirt, make the seal more reliable.

2. The valve disc is encapsulated with NBR as a whole. The inner parts of the valve are made of corrosion-resistant stainless steel and copper alloy, which can be used for sewage system to adapt to harsh working conditions.

3. Small size, light weight, easy to install and maintain

4. The valve stem is sealed with three O-rings, which greatly reduces the friction resistance of the switch and makes the switch light and water-tight.



Major Component Materials

Part nameMaterial Science
valve bodyCast iron, ductile iron, cast steel
Valve plateDuctile Iron + EPDM or NBR
Inner hexagonal boltCarbonization treatment
Seal ringNBR, EPDM
BonnetCast iron, ductile iron, cast steel
StemStainless steel
O-ringDing Qing rubber
Thrust bearingTin bronze
BoltCarbon steel and alloy steel
GlandDuctile Iron and Cast Steel
Dust coverDing Qing rubber
handwheelMalleable iron

Main Dimensions Table

DN(mm)50060070080090010001200
L457508660720780840960
Hmin1480166522002800280030003000
Hmax1650190023502950295031503150
