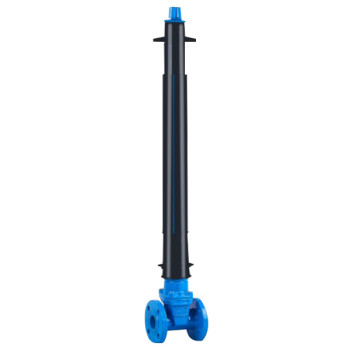

DIRECT BURIED RESILIENT SEATED GATE VALVE

DIRECT BURIED RESILIENT SEATED GATE VALVE

DIRECT BURIED RESILIENT SEATED GATE VALVE
CategoriesGate Valve
BrandKRV
ModelMz45x
Update Time2021-06-17
Detail Information
Mz45x directly buried elastic seat seal gate valve can be installed on various underground pipelines as a two-way closed circuit equipment. Widely used in water, sewage treatment and other industries. It is also suitable for urban water supply and drainage pipe network, high-rise buildings, residential quarters, oil, natural gas, power plant, environmental protection, mining, papermaking, fermentation and other industries.

MZ45X Technical parameters of directly buried elastic seat seal gate valve

modelMZ45X-10QMZ45X-16Q
Nominal pressure(PN)1016
Sealing test(MPa)1.11.76
Shell test(MPa)1.52.4
Applicable temperature(≤℃)8080
Applicable mediumwater

Material of main parts

Part nametexture of material
Body / bonnetDuctile iron
RamDuctile iron coated with rubber
Telescopic rodstainless steel
Expansion sleeve / buried boxABS plastic / ductile iron
Stem nutcopper alloy

MZ45X Main connection dimensions of directly buried resilient seated gate valve

DNLDD1D2bZ-Φd
PN10PN16PN10PN16PN10PN16PN10PN16PN10PN16
50178165165125125999919194-194-19
6519018518514514511811819194-194-19
8020320020016016013213219198-198-19
10022922022018018015615619198-198-19
12525425025021021018418419198-238-23
15026728528524024021121119198-238-23
20029234034029529526626620208-2312-23
250330395405350355319319222212-2312-28
30035644546040041037037024.524.512-2312-28
35038150552046047042942924.526.516-2316-28
40040656558051552548048024.52816-2816-31
