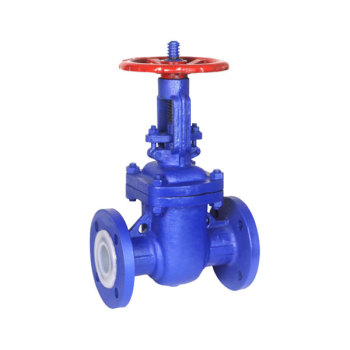

Flange type fluorine lined gate valve

Flange type fluorine lined gate valve

Flange type fluorine lined gate valve
CategoriesGate Valve
BrandKRV
ModelDN 15- DN 150
Update Time2021-09-27
Detail Information

Flange type fluorine lined gate valve is suitable for aqua regia, sulfuric acid, hydrochloric acid, hydrofluoric acid and various organic acids, strong acids, strong oxidants of various concentrations from – 50 ℃ to 150 ℃. FEP is also suitable for pipelines of various concentrations of strong alkali organic solvents and other corrosive gases and liquid media.

Product features of flange type fluorine lined gate valve



1. The valve body has two shapes: round body for GB valves, flat body for ANSI class valves with DN ≤ 300 mm and round body for valves with DN ≥ 400 mm. The inner cavity of valve body and bonnet and the outer surface of gate and valve stem are all lined with FEP (F46) and other fluoroplastics;

2. The sealing pair is composed of FPF (F46) / FEP (F46) or other materials, with small friction and low opening and closing torque

3. PTFE (F4) standard packing is used for packing, with good sealing performance and convenient maintenance and replacement;

4. The elastic RAM can compensate the wedge angle deviation between the sealing surface of the ram and the sealing surface of the valve seat, with good coincidence and ideal sealing effect;

5. The medium can pass through the gate valve in any direction from both sides, which is suitable for the pipeline with possible change of medium direction.



Executive standard for flange type fluorine lined gate valve

Product specificationdesign codeStructural lengthConnecting flangeTest and inspection
JB/T11488GB/T12221GB/T9113、JB/T 79、HG/T20592、EN1092-1GB/T13927、GB/T26480

Material of main parts

Serial numberPart nameGrey cast ironcast steelStainless acid resistant cast steelUltra low carbon stainless acid resistant cast valve
ZCPRPLRL
1Body / cover / gateHT250WCBCF8CF8MCF3CF3M
2Stem20Cr131Cr18Ni90Cr18Ni90Cr17Ni2Mo200Cr19Ni1000Cr17Ni14Mo2
3Lining / seatPTFE(F4)、PCTFE(F3)、FEP(F46)、PFA(可溶性 soluble4)
4Gland packingWCBCF8CF8MCF3CF3M
5fillerPTFE(F4)PTFE(F4)PTFE(F4)
6Live bolt351Cr17Ni21Cr17Ni2
7Stem nutZCuAl10Fe3ZCuAl10Fe3ZCuAl10Fe3
8Fastening nut451Cr17Ni21Cr18Ni9Ti
9Nut 0Cr18Ni90Cr18Ni9
10handwheelWCBWCBWCB

Drawing of flange type fluorine lined gate valve

法兰式衬氟闸阀图纸

Flange type fluorine lined gate valve z41f4 / 46-pn1.0mpa main connecting dimensions

DNLDD1D2fbZ-ΦdD0HWT(kg)
151089565452164-Φ141201756
2011710575582184-Φ141201958
2512711585682184-Φ1416023010
32140140100782184-Φ1816024511
40240150110882184-Φ1818028513
502501651251022184-Φ1820030016
652701851451222188-Φ1825034020
802802001601382208-Φ1828041030
1003002201801582208-Φ1830046540
1253252502101882228-Φ1832062060
1503502852402122228-Φ2235071085



Flange type fluorine lined gate valve z41f4 / 46-pn1.6mpa main connecting dimensions

DNLDD1D2fbZ-ΦdD0HWT(kg)
151089565452164-Φ141201756
2011710575582184-Φ141201958
2512711585682184-Φ1416023010
32140140100782184-Φ1816024511
40240150110882184-Φ1818028513
502501651251022184-Φ1820030016
652701851451222188-Φ1825034020
802802001601382208-Φ1828041030
1003002201801582208-Φ1830046540
1253252502101882228-Φ1832062060
1503502852402122228-Φ2235071085
