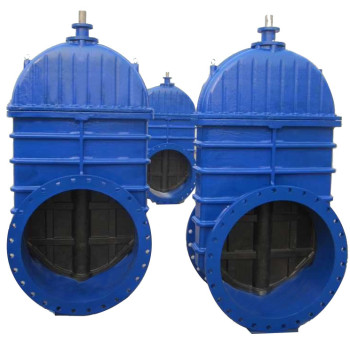

LARGE CALIBER SOFT SEALED GATE VALVE

LARGE CALIBER SOFT SEALED GATE VALVE

LARGE CALIBER SOFT SEALED GATE VALVE
CategoriesGate Valve
BrandKRV
ModelDN500-DN1200
Update Time2021-09-27
Detail Information

Features:

1.high strength

2.light weight

3.precise geometric dimensions

4. ram interchangeable

5.very easily the ground switch

Material of main parts

Part name

Material

body

Gray iron, ductile iron,cast steel

Gate

Ductile iron+EPDM or NBR

Allen bolts

Carbonization treatment

Seals

NBR,EPDM

Bonnet

Gray iron, ductile iron,cast steel

Stem

stainless steel

Thrust bearings

Tin bronze

Bolt

Carbon steel, alloy steel

Gland

Ductile iron, cast steel

Dust CoverNBR

Hand wheel

Malleable iron

Main dimensions

DN(mm)50060070080090010001200
L457508660720780840960
Hmin1480166522002800280030003000
Hmax1650190023502950295031503150
